NEW QUESTION # 131
Which two routing protocols make use of a designated router, or pseudo node, to represent a broadcast network? (Choose two.)
- A. OSPF
- B. IS-IS
- C. MPLS
- D. BGP
Answer: A,B
NEW QUESTION # 132
You want to see a detailed list of all established BGP sessions. In this scenario, what would be a valid command to accomplish this task?
- A. show rouse receive-protocol bgp <neighbor IP address>
- B. show bgp summary
- C. show bgp neighbor
- D. show rouse protocol bgp
Answer: D
NEW QUESTION # 133

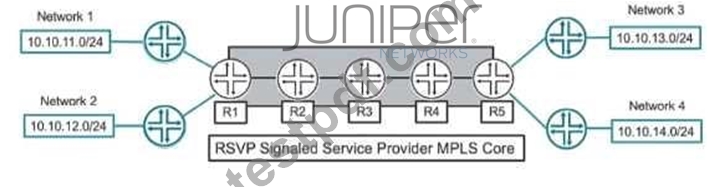

Referring to the exhibit, what is the minimum number of LSPs required to support alt four networks?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: D
NEW QUESTION # 134
Which three statements are true regarding the show system switchover operational mode command? (Choose three.)
- A. This command displays the status of the kernel database.
- B. This command can only be issued on the master Routing Engine.
- C. This command displays the status of graceful switchover.
- D. This command can only be issued on the backup Routing Engine.
- E. This command displays the status of the interface and process databases.
Answer: A,C,D
NEW QUESTION # 135
Which two statements ate correct about the community BGP attribute on a Junos device? (Choose two.)
- A. If the community attribute is present, it should be passed unchanged in the BGP updates.
- B. The community attribute is a mandatory BGP attribute.
- C. The community attribute is an optional BGP attribute.
- D. If the community attribute is present, it is ignored and deleted in the BGP updates.
Answer: A,B
NEW QUESTION # 136
You are deploying an MC-LAG connection at the edge of your network to a new customer. This solution must ensure that traffic uses all available links when forwarding traffic between the two networks.
In this scenario, which two statements are correct? (Choose two.)
- A. You must use active/standby mode when defining the MC-LAG bundle.
- B. You must use active/active mode when defining the MC-LAG bundle.
- C. Transit traffic sent between the two PE devices will use the bundle's member interfaces.
- D. Transit traffic sent between the two PE devices will use the ICL interface.
Answer: B,D
NEW QUESTION # 137
In your network, you have two LDP routers connected across four physical interfaces. You have also enabled LDP to operate on all four of those interfaces. What is the resulting outcome of your configuration between those two routers?
- A. Four sessions are built across four neighbor relationships
- B. Four sessions are built across one neighbor relationship
- C. One session is built across one neighbor relationship
- D. One session is built across four neighbor relationships
Answer: D
NEW QUESTION # 138
You are asked to configure filter-based forwarding on a Junos device.
Which two statements are correct in this scenario? (Choose two.)
- A. You must create a routing policy.
- B. You must create a route target.
- C. You must create and apply a match filter.
- D. You must create a routing instance.
Answer: C,D
Explanation:
To configure filter-based forwarding, perform the following tasks:
- Create a match filter on the ingress device. To specify a match filter, include the filter filter-name statement at the [edit firewall] hierarchy level. A packet that passes through the filter is compared against a set of rules to classify it and to determine its membership in a set. Once classified, the packet is forwarded to a routing table specified in the accept action in the filter description language. The routing table then forwards the packet to the next hop that corresponds to the destination address entry in the table.
- Create routing instances that specify the routing table(s) to which a packet is forwarded, and the destination to which the packet is forwarded at the [edit routing- instances] hierarchy level.
NEW QUESTION # 139

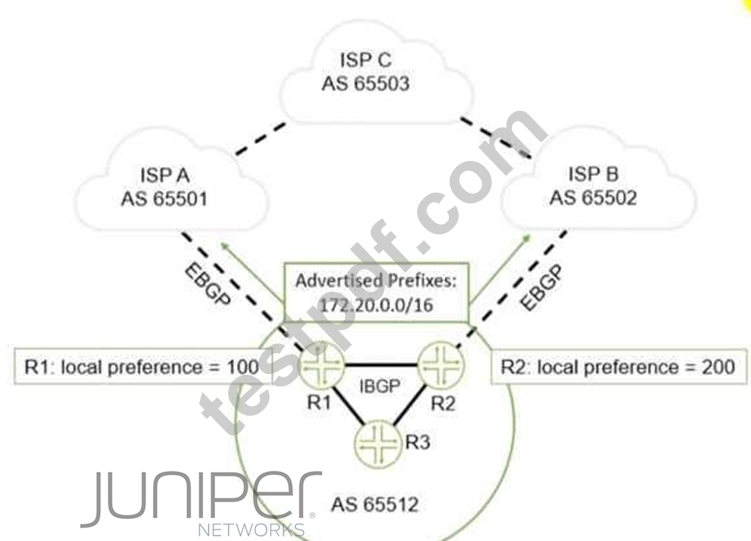

You are advertising a summary route that represents your local network (172.20.0.0716) to both ISP A and ISPB. You want to influence all traffic sent to you from ISP C to go through R2.
How would you accomplish this task?
- A. On R1, prepend your AS number three times on the 172.20.0.0/16 route when advertising It to ISP 1.
- B. On R2. prepend your AS number three times on the 172.20.0.0/16 route when advertising it to ISP 2.
- C. On R1, change the local preference value to 250.
- D. On R2, change the local preference value to 50.
Answer: C
NEW QUESTION # 140

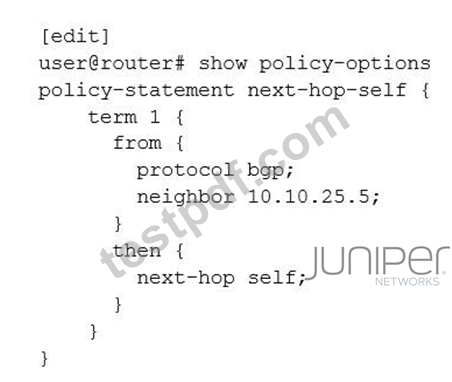

Click the Exhibit.
Your router has an external peering session to 10.10.25.5 and several internal peers. However, routes learned from EBGP peers are showing up in a hidden state on IBGP peers.
Where would you apply the policy shown in the exhibit to solve this issue?
- A. Apply the next-hop-self as an import policy to the internal BGP peers.
- B. Apply the next-hop-self as an export policy to the internal BGP peers.
- C. Apply the next-hop-self as an import policy to the external BGP peers.
- D. Apply the next-hop-self as an export policy to the external BGP peers.
Answer: B
NEW QUESTION # 141

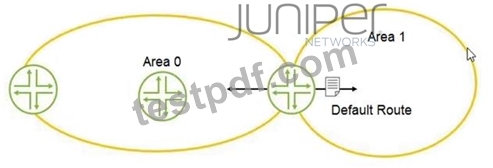

Click the Exhibit button.
You are asked to configure OSPF for the network?
Referring to the exhibit, how should Area 1 be configured?
- A. not-so-stubby area
- B. backbone area
- C. totally stubby area
- D. stub area
Answer: D
Explanation:
https://www.juniper.net/documentation/en_US/junos/topics/topic-map/configuring-ospf-areas.html
NEW QUESTION # 142

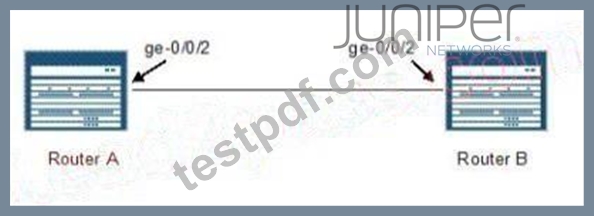

Click the Exhibit button. You have two routers connected over a Gigabit Ethernet link as shown in the exhibit It is required that an IS-IS adjacency be established without the need for a designated intermediate system (DIS)
Which configuration statement entered on both routers will achieve this goal?
- A. set interface ge-0/0/2 unit 0 family iso no-dis
- B. set protocols isis interface ge-0/0/2.0 point-to-point
- C. set interface ge-0/0/2 unit 0 family iso point-to-point
- D. set protocols isis interface ge-0/0/2.0 no-dis
Answer: B
NEW QUESTION # 143
Click the exhibit.
A customer has two VLANs to extend between Site-1 and Site-2. The customer does not want to route the VLANs or renumber the VLANs.
Referring to the exhibit, which two VLAN IDs are egressing the MX Series device towards the optical transport network after translation? (Choose two.)
- A. 0
- B. 1
- C. 2
- D. 3
Answer: B,C
NEW QUESTION # 144

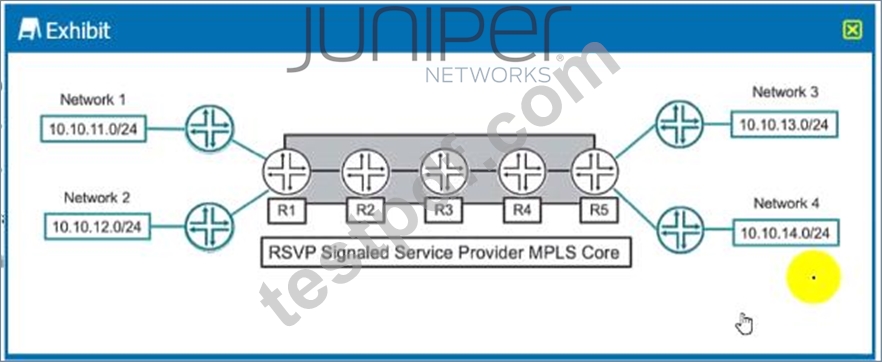

Exhibit
Which two statements are correct about the service provider MPLS network shown in the exhibit? (Choose two.)
- A. R3 is considered a PE router.
- B. R3 is considered an ingress router.
- C. R3 is considered a P router.
- D. R3 is considered a transit router.
Answer: A,C
NEW QUESTION # 145

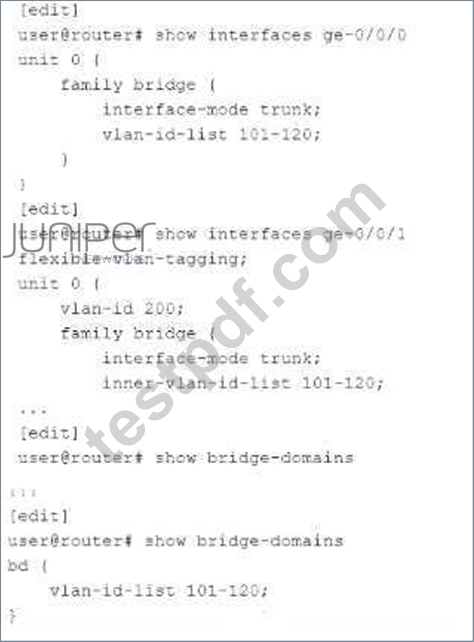

Referring to the exhibit, which two statements are correct? (Choose two.)
- A. Traffic ingressing ge-0/0/0 that is tagged with VLAN 101 will egress ge-0/0M with an outer VLAN tag of 200.
- B. Traffic ingressing ge-0/0/0 that is tagged with VLAN 101 will egress ge-0/0/1 unchanged.
- C. Traffic ingressing ge0/0/0 that Is tagged with VLAN 200 will egress ge-0/0/1 with an outer VLAN tag of 200.
- D. Traffic ingressing ge-0/0/0 that is tagged will VLAN 100 will be dropped.
Answer: B,D
NEW QUESTION # 146
Which two steps are required to enable MPLS on a physical interface in Junos? (Choose two.)
- A. Add family mpls on the loopback interface.
- B. Add the loopback interface under protocols mpls.
- C. Add family mpls on the interface.
- D. Add the interface under protocols mpls.
Answer: C,D
Explanation:
To enable MPLS on a physical interface in Junos, the family mpls statement must be added to the interface configuration. Additionally, the interface itself must be specifiedunder the protocols mpls section of the configuration.References:
MPLS Configuration Guide, Juniper Networks Documentation
Configuring MPLS, Juniper Networks Documentation
NEW QUESTION # 147
......
